EX511 AX3000 Dual Band WiFi 6 Router

Features

• Dual-Band WiFi 6: Speeds up to 3000 Mbps—2402 Mbps on 5 GHz and 574 Mbps on 2.4 GHz.
• Boosted Coverage: Four high-performance antennas and Beamforming technology combine to extend strong, reliable WiFi throughout your home.
• More Connections: OFDMA and MU-MIMO technologies increase capacity and enable simultaneous transmission to more devices.
• Wi-Fi CERTIFIED EasyMesh™: Create a smart mesh network with seamless coverage and greater flexibility based on standard mesh technology.
• Enhanced Security: WPA3 encryption, Multi-SSID, and Parental Controls provide personalized and safer online experience.
• Gigabit Wired Connections: 1x GE WAN port and 4x GE LAN ports provide fast and flexible internet access.
• Easy Setup: Set up your network in minutes with the powerful Aginet app.
• Remote Management: TAUC (TP-Link Aginet Unified Cloud), and TR-069, TR-098, TR-181, TR-111, TR-143 protocols are supported.

Hardware Features

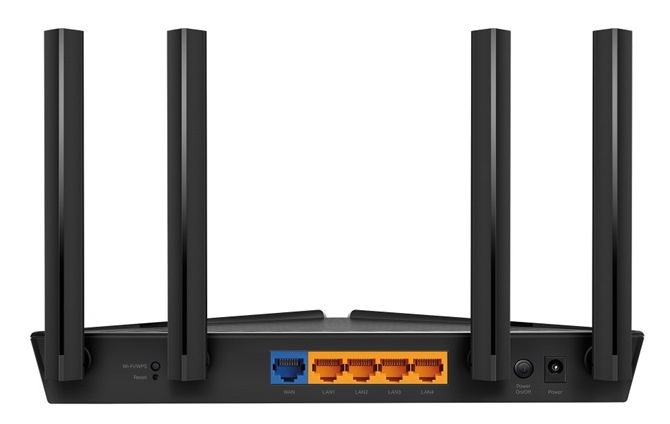

• Interface: 1× 10/100/1000 Mbps RJ45 WAN Port and 4× 10/100/1000 Mbps RJ45 LAN Ports.
• Buttons: Power On/Off Button, Reset Button, Wi-Fi/WPS Button.
• External Power Supply: 12V/1.5A.
• Dimensions (W x D x H): 10.2 × 5.3 × 1.5 in (260.2 × 135.0 × 41.6 mm).
• Antenna: Four high-performance external antennas.

Wireless Features

• Wireless Standards: IEEE 802.11a/n/ac/ax 5 GHz and IEEE 802.11b/g/n/ax 2.4 GHz.
• Frequency: 2.4 GHz and 5 GHz.
• Signal Rate: AX3000 (5 GHz: Up to 2402 Mbps; 2.4 GHz: Up to 574 Mbps).
• Wireless Functions: Enable/Disable Wireless Radio, WMM, Wireless Statistics.
• Wireless Security: WPA/WPA2/WPA3 encryptions.
• Transmission Power (CE): <20dBm (2.4GHz); <23dBm (5.15GHz–5.35GHz); <30dBm (5.47GHz–5.725GHz).
• Multi-SSID: 2× 5 GHz Multi-SSID and 2× 2.4 GHz Multi-SSID.
• Mesh Technology: EasyMesh compatible, supports 802.11k/v/r.

Software Features

• Quality of Service: Hardware QoS, Flow Classification.
• Advanced Features: TX Beamforming, MU-MIMO, DL/UL OFDMA, Airtime Fairness.
• Operating Modes: Router, Access Point.
• WAN Type: Dynamic IP/Static IP/PPPoE/PPTP/L2TP(Multi-EWAN).
• Management: Local (WebGUI, Aginet app) and Remote (Aginet ACS, TR-069, TR-098, TR-181, TR-369, TR-111, TR-143, TAUC).
• DHCP: Server, Client List, Address Reservation.
• Port Forwarding: Virtual Server, Port Triggering, UPnP, DMZ.
• VPN Server: PPTP, OpenVPN, IPSec.
• Firewall: DoS, SPI Firewall, IP and MAC Address Binding.

Other Specifications

• Certification: CE, Wi-Fi CERTIFIED 6, Wi-Fi CERTIFIED EasyMesh
• Package Content: Router, Power Adapter, RJ45 Cable, Quick Installation Guide.
• Environment: Operating Temp: 0c – 40c; Operating Humidity: 10% – 90% non-condensing.
